What is the difference in the wiring? We can solve this puzzle by studying parallel and series connections of batteries.
Look at the images of circuits shown above and draw circuit diagrams of each.
Battery
connections |
|

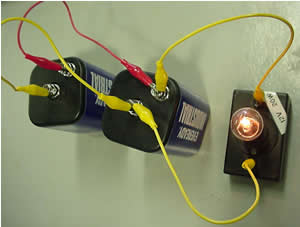

| Stephen was given two 6V batteries and one 12V light globe. He was told to connect the batteries and light globe in a circuit so that the light globe was glowing with maximum brightness. Stephen connected the circuit as shown on the right, and noticed how bright the globe was. | |
| Stephen noticed that the light globe was glowing as bright as if it was connected to one 6V battery. The challenge was not as easy as first thought. | |
| His brother Jonathon suggested that Stephen may wish to rewire the circuit to get more voltage across the light globe. He suggested the circuit shown on the right. | |
What is the difference in the wiring? We can solve this puzzle by studying parallel and series connections of batteries. Look at the images of circuits shown above and draw circuit diagrams of each. |
|
