Assembly of the rear tail section

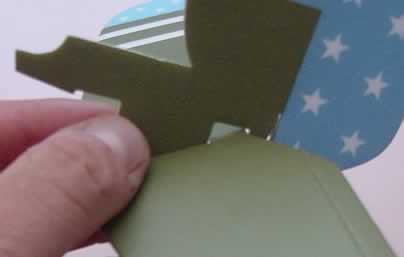

Remove the cut-out from the vertical rear wing, as shown on the right.
Attach the horizontal and vertical tails as shown

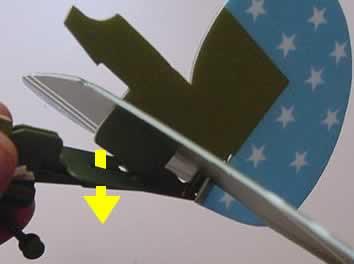

Insert the rear wingf assembly onto the fuselage as shown. The arrow shows how the tab from the vertical wing slides into the fuselage attachment.

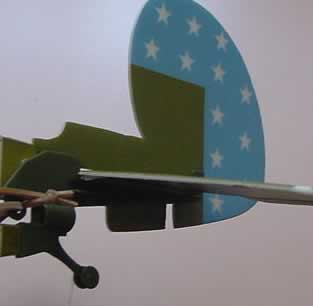

The complete rear wing assembly is shown on the left.
