Direction

Lets start with the following problem.

A plane travels north at 40 km/hr. A 10 km/hr westerly wind is also blowing.

Calculate the direction the plane is travelling in.

To solve this problem we use trigonometry (in particular sine and cosine)

We will use the following formulae.

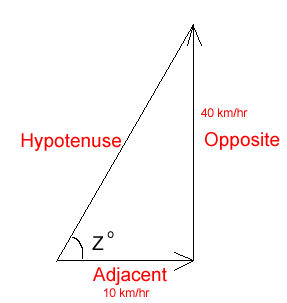

Since the vectors relating to the velocities of the plane and westerly wind forma right angled triangle we can use the following formulae.

Adjacent = hypotenuse X cos ( Zo )

Opposite = hypotenuse X sin ( Zo )





Step 1) Using the Pythagorean Theorem we calculate the magnitude of the resultant vector which in this case is represented by the hypotenuse.

The magnitude of the resultant vector is 41.23 km/hr.

Step 2) Use sin or cos to calculate the angle ( Zo )
Lets use the sin function and transpose to make it equal to sin( Zo ).
=> Opposite/Hypotenuse = sin( Zo )
=> 40/41.23 = 0.97 = sin( Zo )
=> sin-1 (0.97) = Zo

=> 75.97o = Zo

So the direction is west 75.97o north.
Or north 14.03o west.

Try the following problems.

1) A plane travels at 30 km/hr north and encounters a 10 km/hr westerly wind.

In what direction is the plane travelling?
Solution

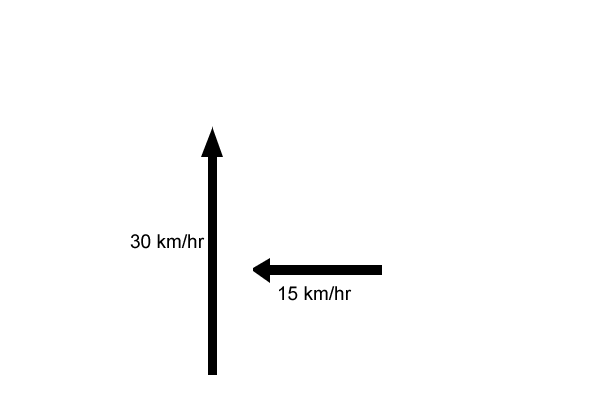

2) The same plane travels north at 30 km/hr and encounters a 15 km/hr westerly wind .

In what direction is the plane travelling?
Solution

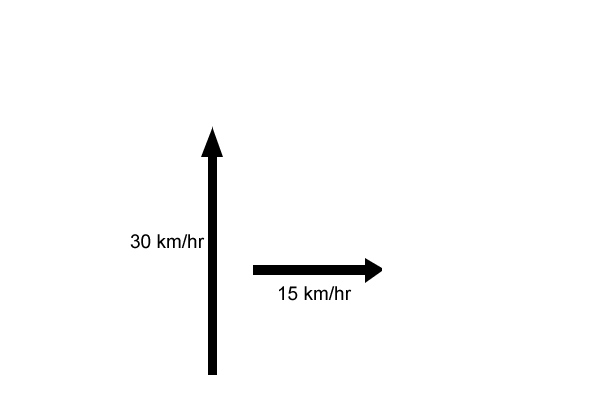

3) Another plane takes off and travels north at 30 km/hr. and encounter a 15 km/hr easterly.

2) The same plane travels north at 30 km/hr and encounters a 15 km/hr westerly wind .

In what direction is the plane travelling?
Solution
