Vector addition

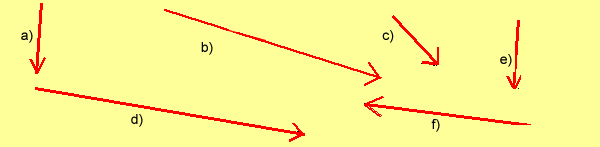

Sketch the resultant vector or select from the vectors shown below when:

vectors "A" and "B" are added; Solution

vectors "C" and "B" are added; Solution

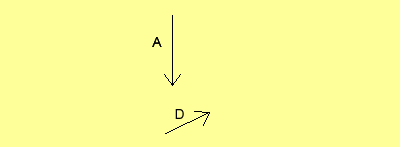

vectors "A" and "D" are added; Solution

vectors "E" and "D" are added; Solution

vectors "E" and "F" are added; Solution

vectors "F" and "C" are added. Solution

Draw the resultant vector from the addition of the four vectors shown on the right.

Solution

Draw the resultant vector from the addition of the four vectors shown on the right.

Solution
