Assembly of the speed racer Preparing the rotor |
|

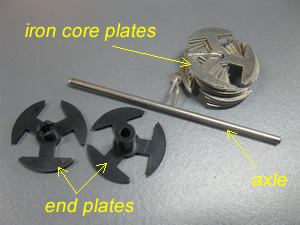

In preparation for the construction of the rotor, assemble the items shown on the right from your kit. |
|
The use of an iron core can increase the strength of the magnetic field produced by electric currents flowing through the insulated wire wrapped around the core. | |

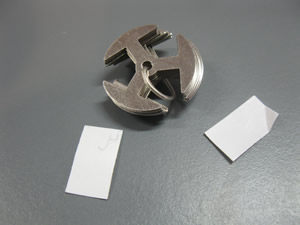

Keep the core plates tied together and align them as shown on the right. |
|

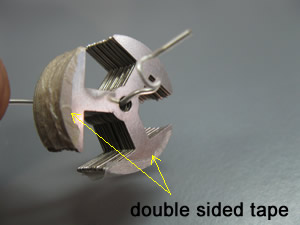

Using the double sided tape secure them in place before removing the tie. |
|

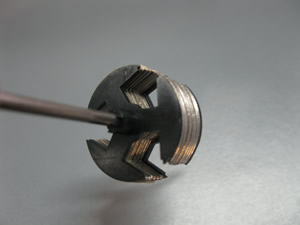

Insert the axle and place the rotor end plates on either end. Click to see how they align. |
|
