Assembly of the speed racer Preparing the battery compartment and battery holder |
|
|
|

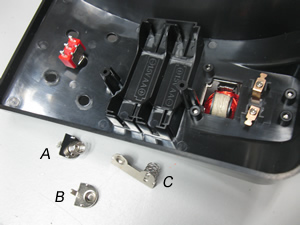

Identify the following items as well as the two short white wires and assemble them on your workbench. | |

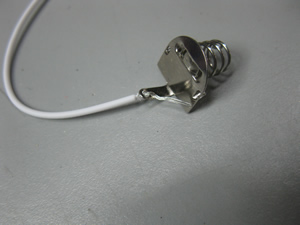

Secure a white wire on the terminal labelled A. |
|

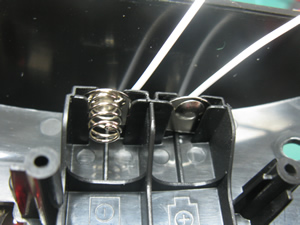

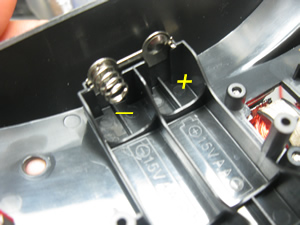

Insert this into the end of the battery compartment labelled negative, as shown on the right. |
|

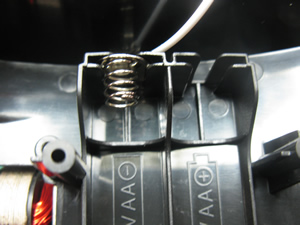

Secure a white wire to terminal B and place it on the other battery compartment labelled positive, as shown on the right. |
|
Take the dual terminal piece labelled C and place it on the other side of the battery compartments. | |

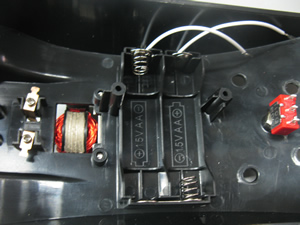

The completed battery compartments look like the image shown on the right. | |
The battery holder can be put on now or after the wiring is is complete. | |

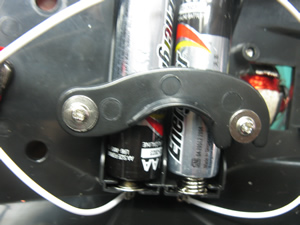

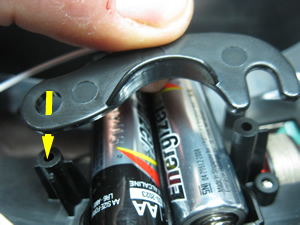

The following pictures show the stepwise assembly. | |

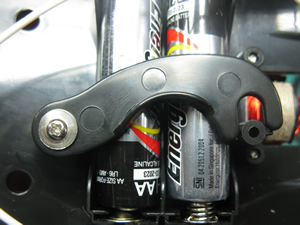

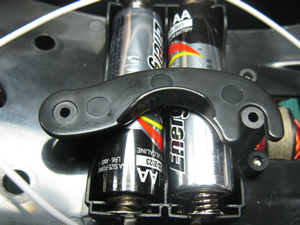

The image on the right shows the complete battery compartment and holder. |
