Assembly of the speed racer
Preparing the commutator

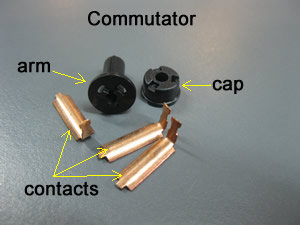

Collect the parts shown on the right from your kit.

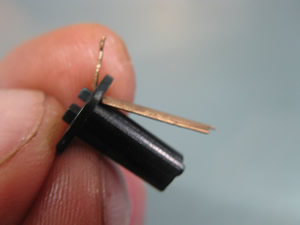

Insert each contact onto the arm as shown, on the right.

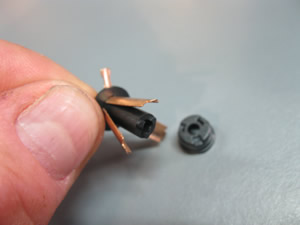

Once all three contacts are assembled on the arm the cap is then placed at the end.

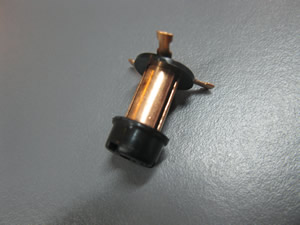

The complete commutator is shown on the right.









Place the commutator on the axle to complete the armature. Connect the three twisted wires to its own contact on the commutator and secure in place.
