Solution

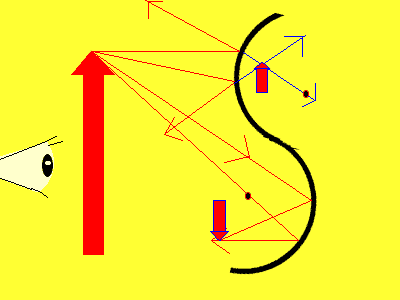

The image seen by the person will be "B" The top arrow is the virtual image formed by the convex mirror while the bottom arrow is the reall image formed by the concave mirror surface.
The top image is a virtual, upright and reduced image while the bottom arrow is an invertedt, real and reduced image.
Click to hide the solution
|
Mirrors exercises |
|
 |
 |
|

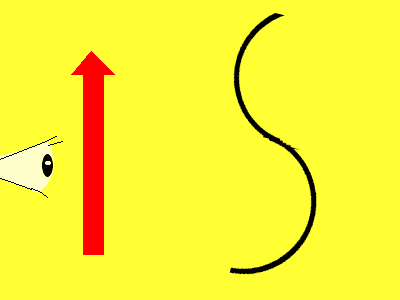

A person views an object in the shape of an arrow through a reflective surface as pictured above. Which one of the options on the right is she most likely to see as a reflection? Explain your answer using the adjectives, virtual, real, inverted, upright, Draw the ray diagrams for this
image. Click to see the solution. |
|
