light - mirror exercises ray diagram solution to q1

Solution

A concave mirror is used. The light source(globe) is placed exactly at the focal point of the mirror. The light is reflected as a parallel beam of light. The glass in front of the mirror is not a convex lens as this would focus the light at a single point.

Click to hide the solution

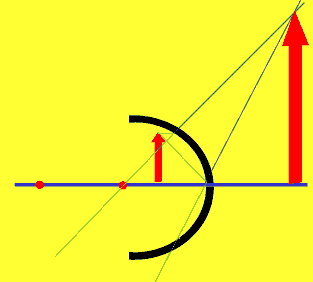

Mirrors exercises Ray diagrams solution to 1)
	Use the adjectives real,virtual,upright,inverted, magnified reduced, same size to describe the image formed. *Virtual, upright, magnified*
