Making a telescope



Obtain two convex lenses, a strong and a weak one. Take the weak convex lens with the long focal length and fix it to a metre ruler with plasticine.

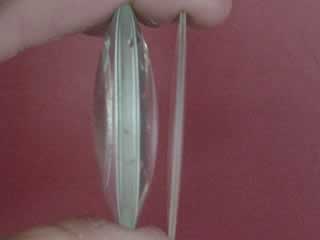

Lenses for a simple telescope.

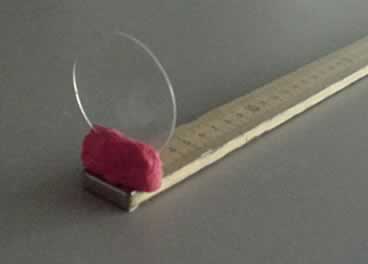

The weak lens fixed to the ruler with plasticine.

Point the ruler at a distant lamp and using a piece of paper, find the image that the lens forms.Do this by moving the piece of paper away from the lens until a clear image is formed. Click to see a 120Kb video.

Use the strong lens as a magnifying glass to view the image, as pictured on the left. Now remove the paper screen and look through both lenses at the lamp.

The lamp should appear inverted, larger and closer

Image of the distant light globe formed by the weak lens. Strong lens used as a magnifying glass.

Home

Strong lens Weak lens
