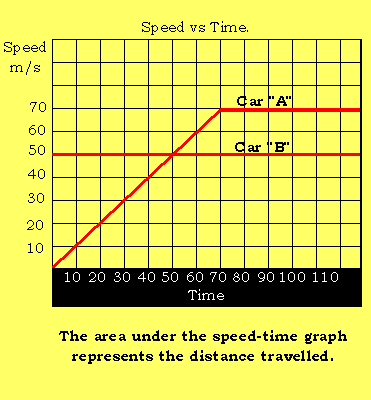

The vehicles will be next to each other 6125m into the chase. Exactly 122.5 seconds into the chase the vehicles are side by side. The area under each speed-time graph gives the distance travelled by each vehicle. |
Click
to hide the solution |
|
|
Velocity vs Time graphs Exercises (Part 4) |
|
|
|

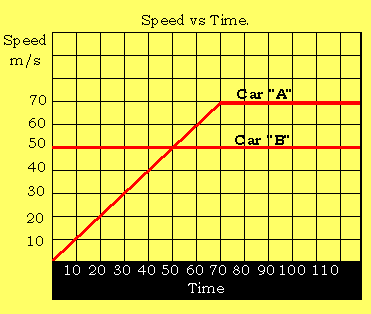

Car "A" is parked on the side of the road. Car "B" races passed and car "A" accelerates from rest to catch up to it asw shown in the graph on the left. a) At what time are both cars next to each other? b) How far did car "A" have to travel before the two cars were side by side? c) What is the acceleration of car "A" over the first 70 seconds of this very fast chase? Solution |
|
