Construction of Hydraulicus
Attaching the turning mechanism cont.
Step 3 Attach the turning mechanism to the stand by placing a paper fastener through the small hole (the hole that is NOT next to the slit, scan the image below to identify the right connection point) on the stand.

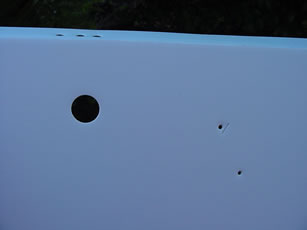

The stand showing where the different attachement points are. Scan the image for more detail.
Step 4 Push the lip of the syringe through the slit as shown on the left. Glue the syringe into position.
Step 5 Glue the syringe to the stand at points "A" and "B".
Glue the syringe at A and B
The complete turning mechanism attached to the stand.
 The complete assembly. Make sure the levers work without too much friction or resistance.
Continue

Home



The lip of the syringe is pushed through this slit and glued. The turning mechanism is secured with a paper fastner through this hole. The base axle fits though here.
