Consider

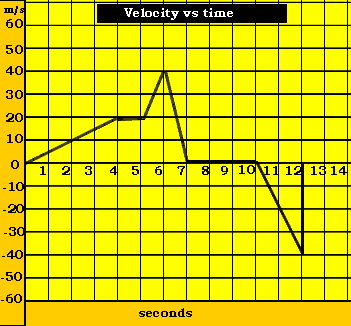

a vehicle with the velocity-time graph on the left. a) FInd the velocity at 6s b) Find its acceleration
during the first 4 seconds. c) How far did the vehicle
travel during the first 7 seconds. d) When did the vehicle start its journey back? 10 seconds into the journey the vehicle started its way back. |
Click
to hide the solution |

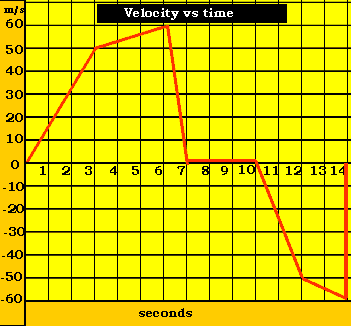

The image on the left shows the velocity time graph of a rocket that is launched vertically skywards. a) What is the altitude reached
by the rocket 3 seconds into the flight? b) What is the acceleration
of the rocket during the 3 - 6 second time period? c) What is the altitude of
the rocket 7 seconds into the flight? d) At what time did the engines of the rocket cease stop producing thrust? Just after the 6 second mark the engines stopped producing thrust. Click
to hide the solution |
Velocity vs Time graphs Exercises (Part 3) |
|
|
Consider
a vehicle with the velocity-time graph on the left. a) FInd the velocity at 6s b) Find its acceleration during the first 4 seconds. c) How far did the vehicle travel during the first 7 seconds. d) When did the vehicle start its journey back? Solution |
|
The image on the left shows the velocity time graph of a rocket that is launched vertically skywards. a) What is the altitude reached by the rocket 3 seconds into the flight? b) What is the acceleration of the rocket during the 3 - 6 second time period? c) What is the altitude of the rocket 7 seconds into the flight? d) At what time did the engines of the rocket cease stop producing thrust? Solution |
